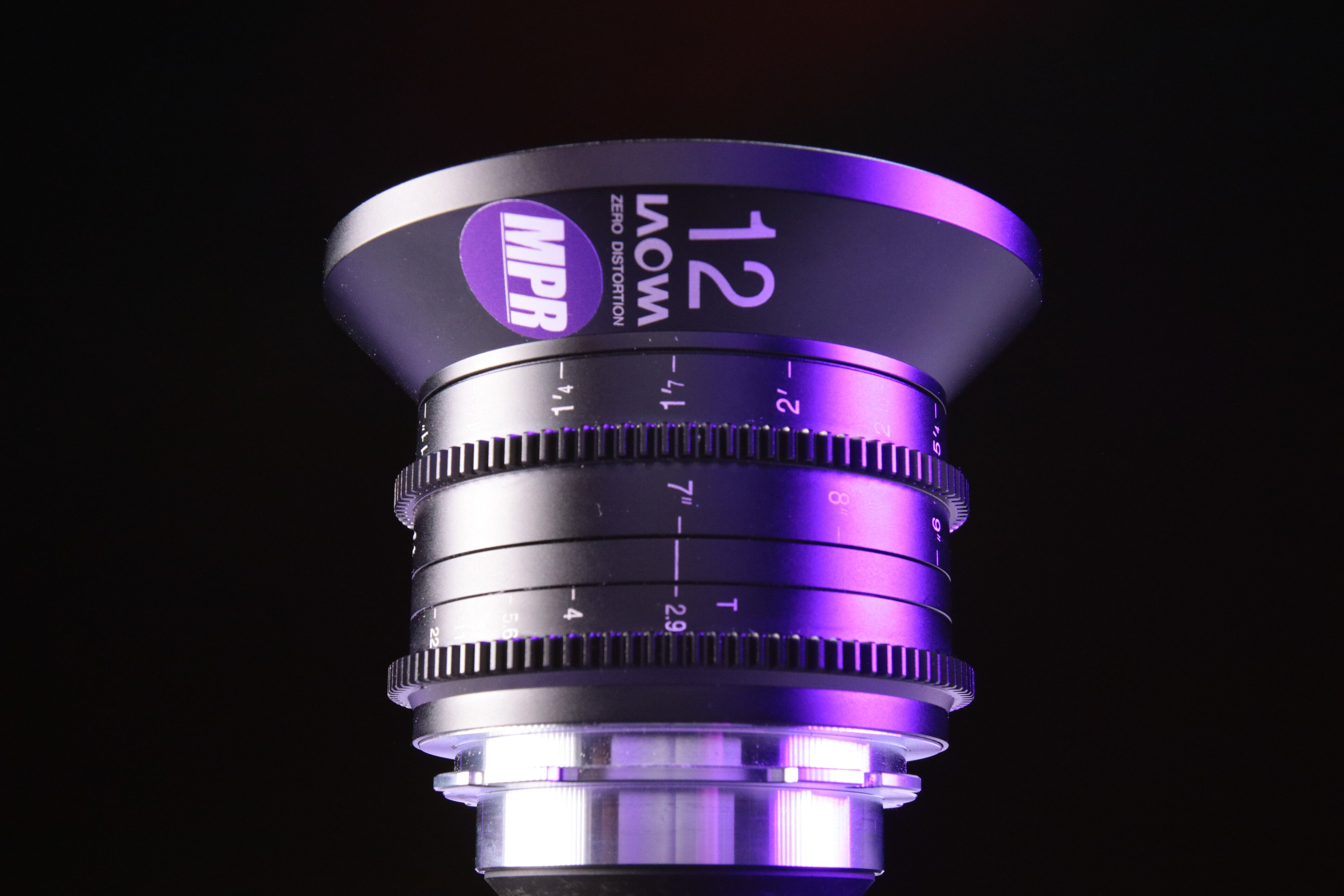

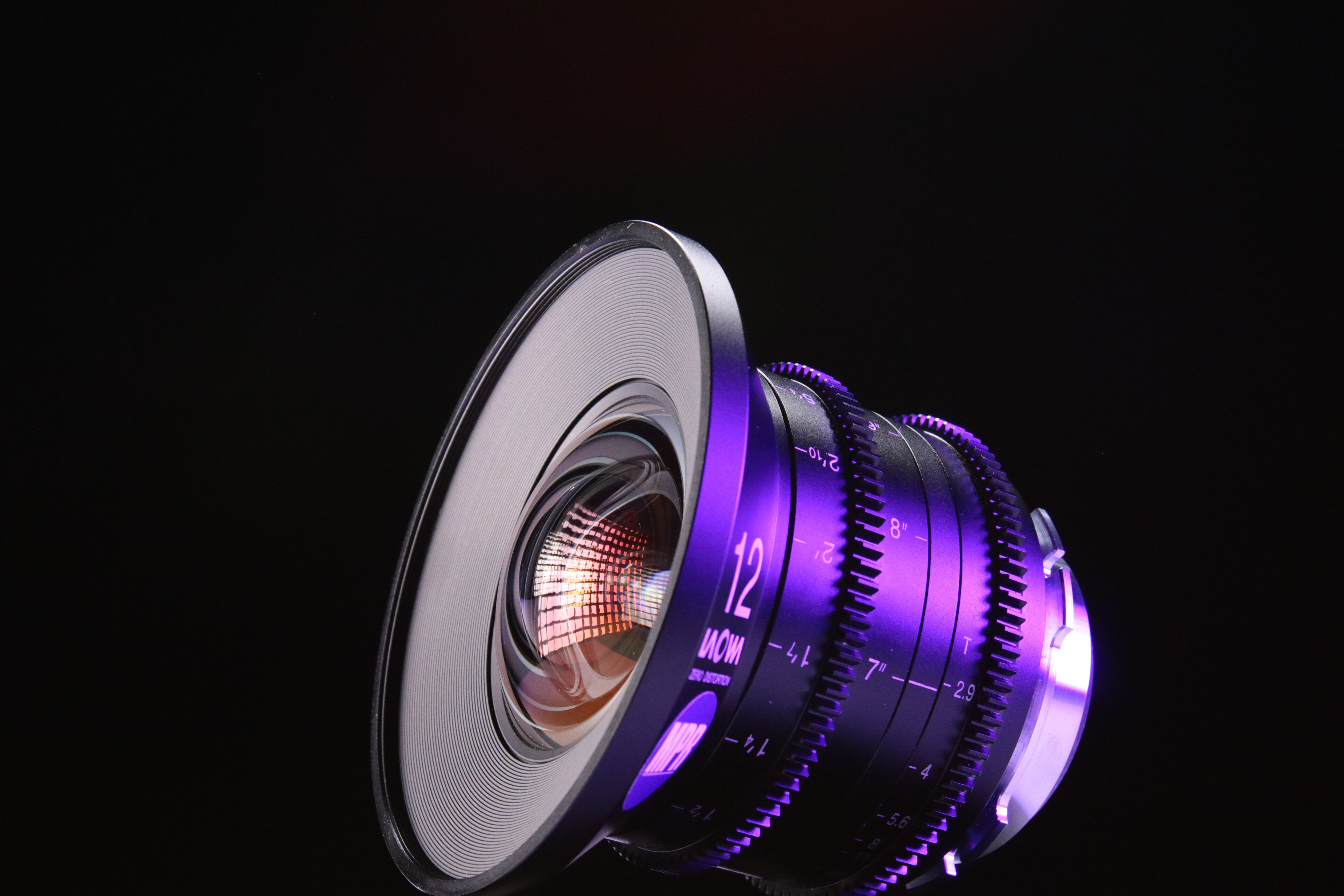

Venus Optics Laowa 12mm T2.9 Zero-D Cine Lens PL Mount

The image circle allows cinematographers to use not only on full frame sensors (Size = 43.14mm), but also able to fill the Vista Vision sensors on RED Monstro and the sensor on Arri Alexa LF (Size @ open-gate = 44.7mm) fully. The lens is also ideal for Super35-sized camera owners with the ultra-wide 17mm equivalent field of view and its future-proof decision when cinematographers need to upgrade to large format cameras.

This 12mm lens is extremely compact and lightweight despite of the extreme specifications. It measures 3.4” (87mm) long and weighs less than 1.5 lb (675g). It can be easily fitted onto any sorts of stabilizations system including handheld gimbals.

The optical distortion of ultra-wide angle lens will never be a nightmare for DoP. The distortion rate of good wide angle lenses in the market ranges from 2-4%. Venus Optics, however, are able to compress the distortion to a close-to-zero level.  In fact, the ‘Zero-D’ claim had been validated by many existing Laowa lenses owners from all around the world.

Designed with standard 0.8 mod gears on both aperture and focusing rings for easy installation of follow-focus system. An extended 270° smooth focus throw is designed for accurate focus pulling. The entire enclosure of the lens is made up of aluminum alloy. A 114mm step-ring is included in the package to expand the front diameter to fit with industry sized matte box. Venus Optics have tested with a number of matte boxes in the market and it is still free of vignetting on VV sensor with the matte box installed. The lens comes with three different variants, PL, EF and E mount (Not inter-changeable). Shims with different thickness is also included for users to do flange calibration.
